USB Type C侧插6PIN母座特性:

SPECIFICATIONS:

1. ELECTRICAL CHARACTERISTICS:

 1.1. RATING: 3A(PIN1&5),0.5A(PIN2&3&4);

 1.2. CONTACT RESISTANCE: 30 mΩ MAX.(INITIAL);

 1.3. DIELECTRIC WITHSTANDING: 500V AC MIN.;

 1.4. INSULATION RESISTANCE: 1000MΩ MIN.;

2. DURABILITY: 5,000 CYCLES MIN.;

3. INSERTION FORCE: 3.5Kgf (35N) Max.;

4. EXTRACTION FORCE: 0.8Kgf (8N) Min;

5. WATER PROOFNESS:THIS PRODUCT IS BASED ON IPX6.

6. PLUG INTERFACE DIMENSIONS COMFORM TO USB2.0 SPEC.

7. PACKAGING: TAPE & REEL.

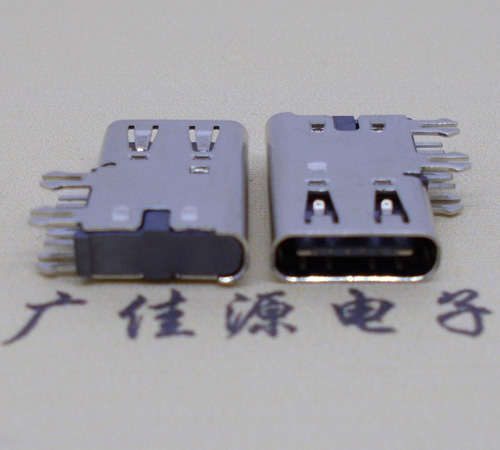

USB Type C侧插6P母座逐渐成为了移动设备的首选接口，它与生俱来所具有的优点（双面插拔盲操作、最高3A-5A大电流充电、高频数据传输）让其迅速成为移动设备制造商的“宠儿”，长13.5MM，宽9.0MM，厚3.16MM，引脚针数为6Pin，五金外壳选用高强度不锈钢，焊板方式为四插脚插板焊接，为了增强插拔力度及接口牢固度，我司针对这款侧插式Type C母座，在对角线上设计了双鱼叉型脚位插板，从结构上来看，可以有效地增强其抓板力度。
