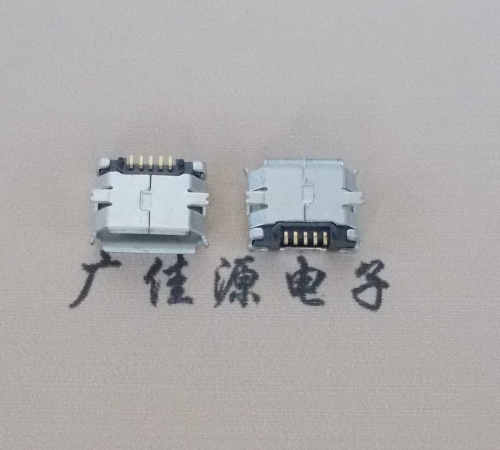

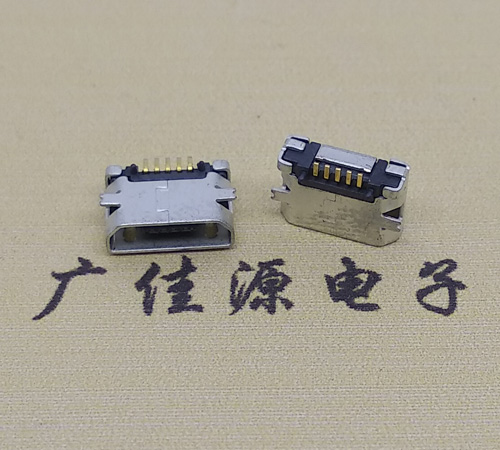

Micro USB 5PIN接口连接器电气特性说明:
Note:
1.Material:
1.1 Housing: High temperature
thermoplastic with g.f,UL94v-0
1.2 Contact: copper alloy,t=0.20mm
1.3 Shell: copper or sus304,t=0.25mm
2.Specification:
2.1 Current rating:1,5PIN 1.8A Max/2,3,4PIN 1A Max.
2.2 Dielectric withstanding
voltage: 100 V(ac) for 1 min.
2.3 Contact resistance: 30 mΩ Max.
2.4 Insulation resistance: 100 MΩ Min.
2.5 Total mating force: 3.57 Kgf Max.
2.6 Total unmating force: 1.0 Kgf Min
2.7 Temperature range: -30°C~80°C
