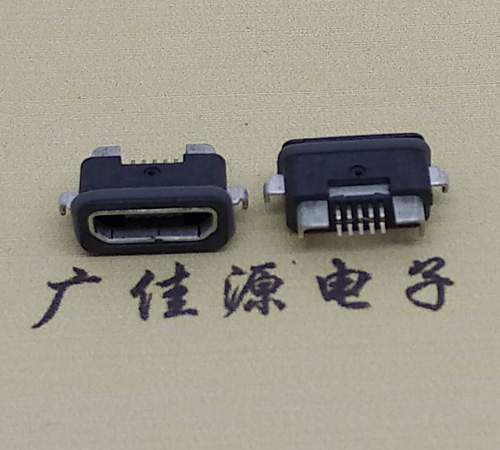

Waterproof MICRO USB base, phone charging tail plug Type B model

Waterproof MICRO USB base, phone charging tail plug Type B model

Products Class:Micro USB female seat
Prodects desc:Michae/Mike waterproof Micro USB Type B port 5PIN master seat, four-foot sinking board style, application market demand, Guangjiayuan Technology launched a new waterproof Micro USB connector, The component can protect expensive mobile devices from damage caused by water entering or dust drifting. The waterproof Micro USB is only slightly larger than non-waterproof products, and its waterproof dust protection function greatly reduces maintenance costs and after-sales service. Dependence.
Online Service:+86-755-33182327

MICRO USB Type B anti-jellyfish seat material characteristics:
1. Material:
1-1. Terminal: C5191-EH, T = 0.15 mm; Nickel bottom 50u "MIN.
Gold-Plated * U "MIN.welded area gold-plated ** U" MIN.
Section 1-2. D Type B steel shell: SUS201-1 / 2H, T = 0.30 mm;
The surface is plated with solvable nickel 50u "MIN.
1-3. Molding: LCP; UL94V-0; Color: Black.
2. Electrical characteristics:
2-1. Contact impedance: 30mΩ MAX.
2-2. Insulation impedance: 100M Ω MIN.
2-3. Voltage resistance: 100V AC FOR 1 MINUTE.
3. Mechanical characteristics:
3-1. Insert force: 35N Max.
3-2. Pull out force: 10 N Min.
4. Durable: 5,000 times

Waterproof MICRO USB baseThe MicroUSB waterproof sink connector base is used in various digital products such as mobile devices, MP3, MP4, PDA, PSP, Bluetooth headsets, electric toothbrushes, children's watches, digital cameras, automobiles, and medical devices.
MICRO USB interface stamping injection assembly integrated enterprise, the cost is lower

The strong and durable surface of this connector can seal the opening of its shell. This connector can be used for fully sealed IP 54 mobile phones. It is also suitable for both Type A and Type B Micro USB plugs, and supports ordinary USB and USB OTG. The product complies with the Micro USB 2.0 specification and supports high-speed data and power transmission.

Keywords:Water proof MICRO USB base, Micro USB waterproof interface, USB waterproof base
